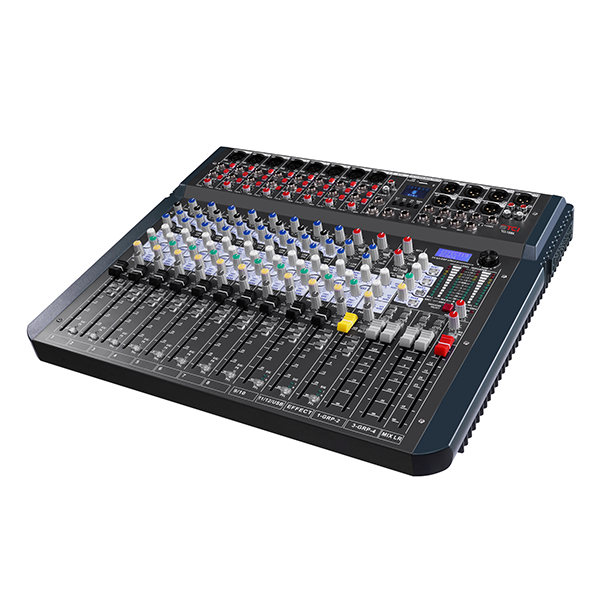

12CH Mixer TCI-12MX
Features
• Channels: 12
• Connectivity: USB & Bluetooth
• Effects: 32 optional effect modes
• Inputs: 8Mic 4Stereo 4AUX (auxiliary in/out)
• Outputs: 2Main 4Group 1Mono 4AUX 1Phone
• Performance: Large dynamic range, low noise, high‑definition True MIC circuit
• Sound Quality: Excellent clarity and precision
• Power: Each input channel with independent 48V phantom power switch
- Description
- Specifications
- Equipments
- Downloads
The 12‑channel professional mixer combines versatility and clarity with USB and Bluetooth connectivity. It features 32 optional digital effects, 8 microphone inputs, 4 stereo inputs, and 4 AUX in/out for flexible routing. With 12 outputs including main, group, mono, AUX, and headphone, it delivers powerful dynamic range and low‑noise performance. Each channel is equipped with an independent 48V phantom power switch, ensuring high‑definition True MIC circuitry and excellent sound quality for live and studio applications.
| Model | TCI-12MX |
| 12 channels | 12 channels |
| Recording input | 47 KΩ |
| Microphone input | ≥1.0 KΩ |
| Maximum output vol | 3V MAX |
| High frequency | 12 KHZ/±15 dB |
| IF | 0.25-6.0 Kh/±15 dB |
| Low Frequency | 80 Hz/±15 dB |
| Equivalent input noise: | ≤-110 dBm |
| Frequency response | 20 HZ~20 KHZ (+1, -3 db) |
| Parametric equalization | input 5 segments (20HZ--20KHZ) ±12dB, Q 0.3~15 adjustable |
| Total harmonic distortion | <%1 (rated condition: 20 HZ-20 KHZ) |
| Maximum gain at mic input | ≥60 dB |
| Max gain at line input | ≥20 dB |
| Line output | ≥10 KΩ |
