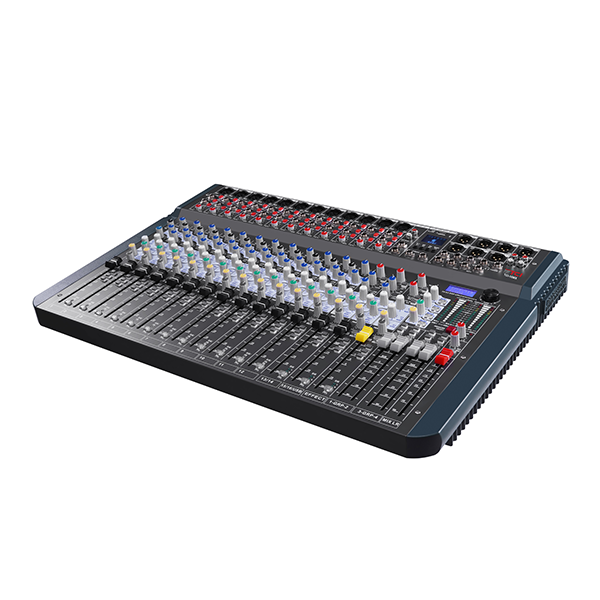

16CH Mixer TCI-16MX
Features
• Channels 16
• Connectivity USB & Bluetooth
• 32 optional effect modes
• Inputs: 12 Mic 4 Stereo 4 AUX (auxiliary in/out)
• Outputs: 2 Main 4 Group 1 Mono 4 AUX 1Phone
• Large dynamic range, low noise, high‑definition True MIC circuit
• Sound Quality: Excellent clarity and precision
• Each input channel 48V phantom power switch
- Description
- Specifications
- Equipments
- Downloads
The 16‑channel professional mixer is designed for versatile live and studio applications, offering USB and Bluetooth connectivity for seamless integration. With 12 microphone inputs, 4 stereo inputs, and 4 AUX in/out, it provides flexible routing options to suit complex setups. Delivering 32 optional digital effects, large dynamic range, and low‑noise high‑definition True MIC circuitry, it ensures excellent sound quality and clarity. Each input channel features an independent 48V phantom power switch, making it a reliable choice for demanding audio environments.
| Model | TCI-16MX |
| Number of channels | 16 channels |
| Recording input | 47 KΩ |
| Microphone input | ≥1.0 KΩ |
| Maximum output vol | 3V MAX |
| High frequency | 12 KHZ/±15 dB |
| IF | 0.25-6.0 Kh/±15 dB |
| Low Frequency | 80 Hz/±15 dB |
| Equivalent input | noise: ≤-110 dBm |
| Frequency response | 20 HZ~20 KHZ (+1, -3 db) |
| Parametric equalization | input 5 segments (20HZ--20KHZ) ±12dB, Q 0.3~15 adjustable |
| Total harmonic distortion | <%1 (rated condition: 20 HZ-20 KHZ) |
| Maximum gain at the mic input | ≥60 dB |
| Max gain at the line input | ≥20 dB |
| Line output | ≥10 KΩ |
