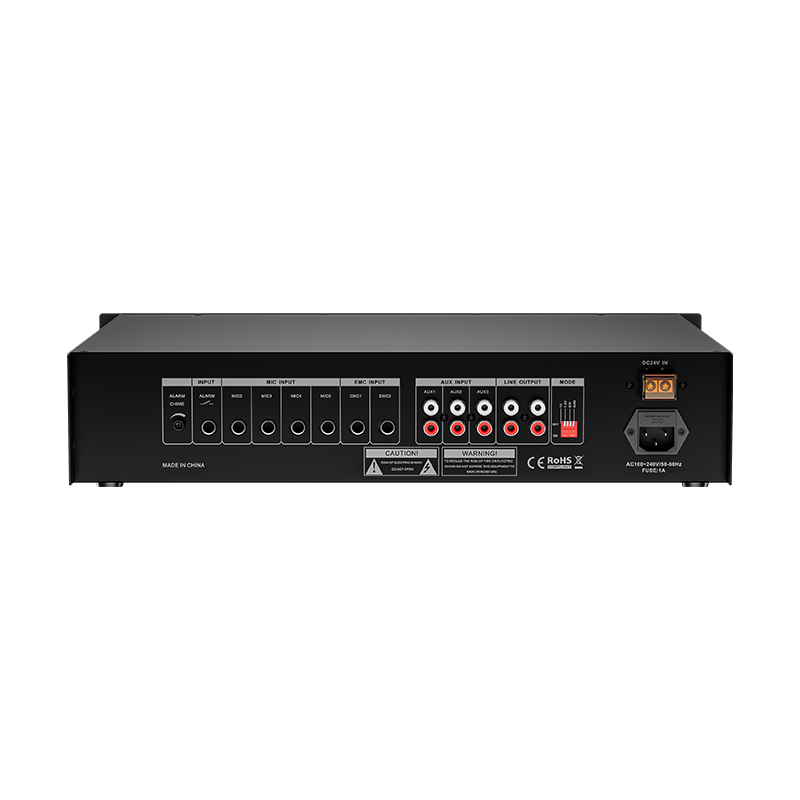

10‑Input Pre Amplifier TCI‑10P
Features
- Model TCI-10P
- Standard cabinet design (1U).
- 5 MIC inputs, 3AUX inputs, 2EMC,4AUX outputs.
- Individual volume controller for MIC & AUX inputs.
- EMC1,2 has priority over all inputs except MIC1.
- Built-in SIREN with a pushbutton on the front panel
- Connecting the Alarm Panel for emergency
- Built-in CHIME circuitry with pushbutton
- 4 signal outputs for 4 power amplifiers
- Full protection short circuits,overloads,overheating
- Certified to CE standards
- Description
- Specifications
- Equipments
- Downloads
Description:
The TCI-10P pre-amplifier has multiple balanced and unbalanced microphone input options and single channel output.
Features:
Model TCI-10P
Standard cabinet design (1U).
5 MIC inputs, 3 AUX inputs, 2 EMC inputs,4 AUX outputs.
Individual volume controller for MIC & AUX inputs.
EMC1,2 has priority over all inputs except MIC1.
Built-in SIREN circuitry with a pushbutton on the front panel
Connecting the Alarm Panel for emergency broadcasting automatically
Built-in CHIME circuitry with pushbutton
4 signal outputs for connecting 4 units of power amplifiers
Full protection against short circuits, overloads, overheating
Certified to CE standards
|
Model |
TCI-10P |
|
MIC Input |
MIC 1,2,3,4,5: 18mV/600 ohms, Unbalanced |
|
AUX Input |
AUX 1,2,3: 200mV/10k ohms, Unbalanced |
|
EMC Input |
EMC 1,2: 1.5V/10k ohms, Unbalanced |
|
Tone |
BASS:±10dB at 100Hz,TREBLE:±10dB at 10KHz |
|
Frequency Response |
20Hz - 20KHz |
|
S/N Ratio |
MIC 1,2: 70dB; AUX 1,2,3: 80dB |
|
THD |
Less than 1% |
|
Muting Function |
attenuation,EMC1,2 overrides all inputs except MIC1 |
|
LED Indicators |
POWER |
|
Protection |
AC fuse |
|
Power Requirements |
AC220V±10%,50/60Hz |
|
Power Consumption |
50W |
|
Dimensions (W×D×H) |
483(W)×366(D)×89(H)mm |
|
Weight |
7.5Kg |
