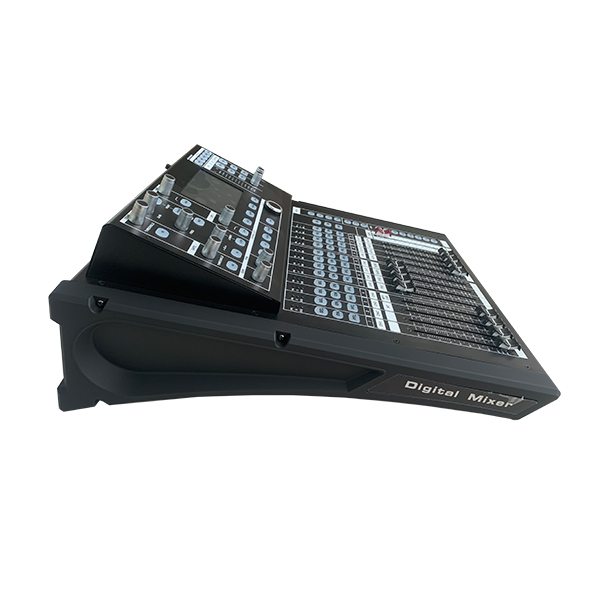

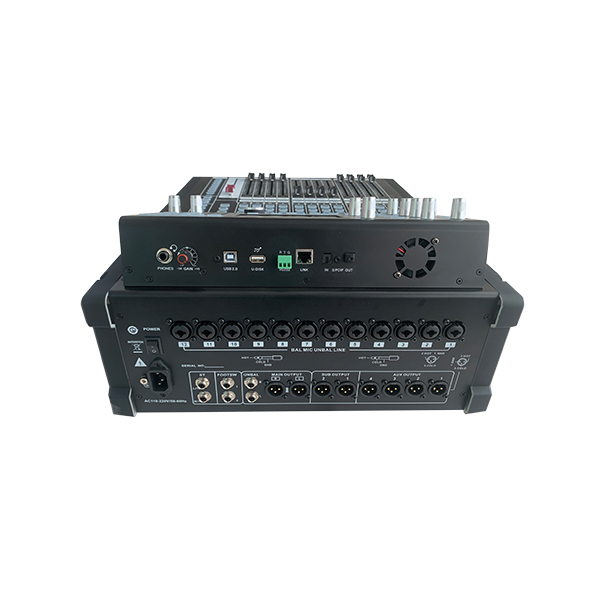

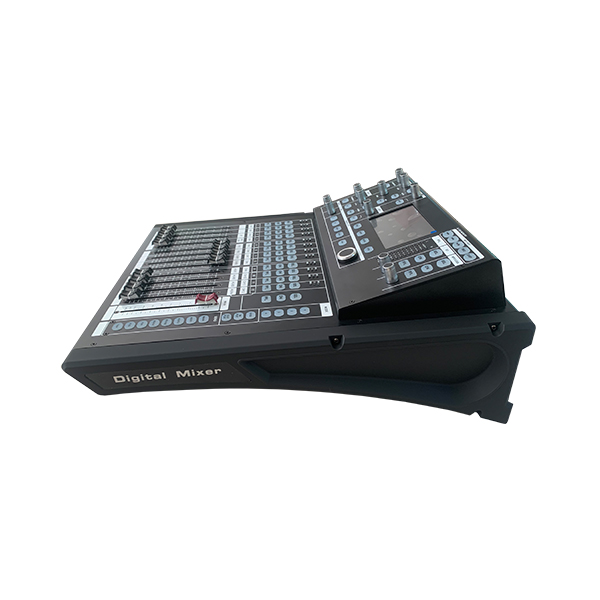

TCI-16DM Digital Mixer 16CH touch screen

Features

16-channel MIC input with stereo input.
Linux-based OS for safer, stable operation.
12 MIC/Line inputs, stereo, and digital input
Independent +48V phantom power for MIC channels.
Built-in noise gate, compressor, EQ, and delay.
100MM electric faders with two layers and 13 ALPS.
Multi-function knob and channel-specific menu mute.
Stereo digital recording and user-definable layers.
5-inch HD touch display (800x480).
Dual USB, optical I/O, and wired/wireless control.
Certified to CE standards

Description
Specifications
Equipments
Downloads

The TCI-16DM is a powerful and versatile audio solution with the following key features:

· 16-Channel Signal Input: Includes 16 MIC channels and a stereo input for comprehensive audio capture.

· Linux-Based Operating System: Ensures enhanced security and stable operation, free from viruses.

· Multiple Input Options: Offers 12 MIC/Line inputs, 1 stereo input, and digital input options such as optical fiber, sound card, and MP3.

· Independent +48V Phantom Power: MIC channels feature independent phantom power control for flexible microphone usage.

· Advanced Audio Processing: Equipped with a noise gate, compressor, high and low pass filters, 5-band parametric EQ, delay, and input channel balance adjustment.

· Precision Control: Features 100MM electric faders, two fader layers, and 13 ALPS electric faders, along with a multi-function knob and channel-specific menu, mute, and monitor.

· Stereo Digital Recording and User-Definable Layers: Supports digital recording, user-defined layers, and output blending capabilities.

· High-Definition Touch Display: A 5-inch 800x480 HD touchscreen with support for both Chinese and English languages.

· Comprehensive Connectivity: Includes dual USB interfaces, optical input/output, and support for wired and wireless adjustments across various operating systems.

This combination of features makes it a highly adaptable and user-centric audio solution, designed to meet a wide range of professional audio needs.

Model	TCI-16DM
16-Channel Signal Input	16 MIC inputs and 1 stereo input.
Linux-Based Operating System	Safer and more stable operation with no fear of viruses.
Multiple Input Options	12 MIC/Line inputs, 1 stereo input, 1 digital input (optical fiber/sound card/MP3).
Input Channel Panning Adjustment	Allows precise control over channel panning.
MIC Input Gain Adjustment	Digital gain adjustment with storage capability.
+48V Phantom Power	Independent on/off control for MIC channels.
Built-in Audio Processing	Noise gate, compressor, high and low pass filters, 5-band parametric EQ, delay.
Quick Copy Function	Easily copies channel parameters.
EQ ON/OFF	Input and output EQ can be toggled on or off.
Multi-Function Knob	Versatile control knob for various adjustments.
Channel-Specific Controls	Multi-function menu, mute, and monitor on each channel.
Electric Faders	100MM faders, two fader layers, and 13 ALPS faders.
Signal Outputs	10 outputs: main (L, R), 4 AUX, 2 group, 1 monitor output.
AUX Output	Pre/post fader AUX output.
Output Processing	High/low pass filtering, 12-band parametric EQ, compressor, delay, phase.
Stereo Digital Recording	Supports stereo digital recording.
User-Definable Layers	Customizable layers and output blending.
Level Indicators	Double rows of 3-color 12-segment indicators.
Dual USB Interface	Includes built-in sound card, supports MP3/PC direct playback and recording.
Scene Call Modes	4 quick modes, 20 storage calls, U disk import/export support.
User Parameter Management	Storage and retrieval via PC management.
Built-in Dual-DSP Digital Effectors	40 preset effect modes.
FX Foot Switch Interface	Interface for external foot switch control.
Optical Input/Output	Supports optical I/O.
Central Control Protocol	Open 232 central control protocol.
Multi-Operating System Control	Compatible with IOS, Android, and Windows systems.
Network Port Adjustment	Supports wired and wireless (via external router) adjustments.
Touch Display	5-inch 800x480 high-definition touch display with Chinese and English interface.
