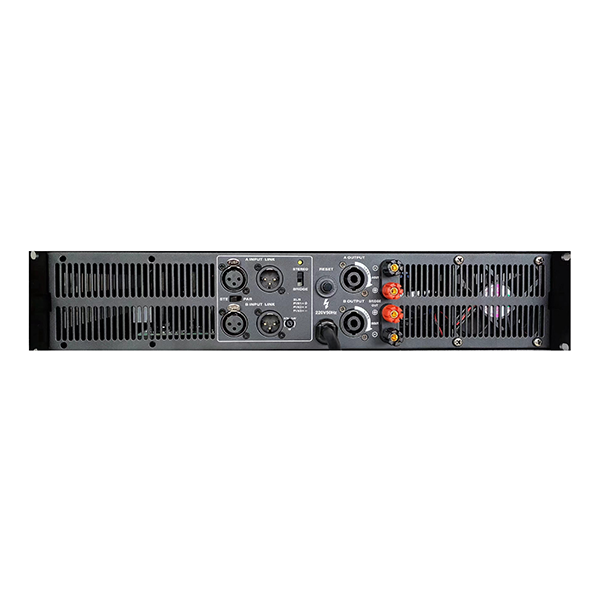

Professional Power Amplifier 2 Channel

Professional 2-Channel Power Amplifier
Available 2×300W, 2×400W, 2×500W,
2×600W, 2×800W, 2×1000W, 2×1200W, 2×1600W.
High Output Performance
Bridge Mode Power
Low Distortion
Frequency Response – 20Hz–20kHz
Flexible Input Sensitivity
Balanced & Unbalanced Inputs
Reliable Connectivity
Comprehensive Protection

Description
Specifications
Equipments
Downloads

The Professional 2-Channel Power Amplifier Series is designed to deliver high-performance audio across multiple power configurations, making it the perfect solution for live sound, fixed installations, and professional audio systems.

Available in eight different models — 2×300W, 2×400W, 2×500W, 2×600W, 2×800W, 2×1000W, 2×1200W, and 2×1600W — this amplifier series offers unmatched flexibility to meet the demands of venues of all sizes. Whether you need reliable amplification for small conference rooms or powerful output for large concert halls, there is a model tailored to your requirements.

Each configuration is built with low-distortion circuitry, wide frequency response (20Hz–20kHz), and advanced protection systems to ensure clean, stable, and safe operation. With balanced XLR inputs, OhmXLR outputs, and comprehensive safety features against short circuits, overheating, and overload, these amplifiers guarantee professional-grade reliability.

Model	TCI-P2300	TCI-P2400	TCI-P2500	TCI-P2600	TCI-P2800	TCI-P21000	TCI-P21200	TCI-P21600
Rated Power@8Ohm	*2300W**	*2400W**	*2500W**	*2600W**	*2800W**	*21000W**	*21200W**	*21600W**
Output Mode	4-8 ohms(Ω)
Intermodulation distortion 60HZ/7HZ 4: 1	＜0.04%
Damping coefficient	Single channel operation, 8Ω load 400HZ (≥300)
Frequency Response	20-20KHZ <±0.1dB
THD	<0.5% at 1kHz
S/N 8Ω load A-weighted	>100dB	>90dB	>90dB	>90dB	>90dB	>90dB	>90dB	>90dB
Conversion rate	>Single channel operation, 8Ω load 10HZ square wave (≥40V/us)
Input sensitivity	< 3 dB,from level without signal to be loaded fully
Input impedance	Normal operating conditions, 1HZ 20Kohms balanced input, 10Kohms
Input interface	XLR female socket
Output interface	OhmXLR
Protection mode	Short circuit, overheating, overload, undervoltage, output DC
Min load impedance single channel operation	＞4Ω
Ambient temperature	Working temperature: -10℃-40℃, storage temperature: -25℃-80℃
Power Supply	185-240V 50/60HZ
Power Consumption	1100W	1200W	1500W	1800W	2300W	2900W	3300W	4200W
Dimension	485×410×89mm				485×440×89mm
Packing Size	550×500×189mm				550×580×189mm
N.W	10Kg	11Kg	12Kg	13Kg	15Kg	17Kg	18Kg	20Kg
G.W	12Kg	13Kg	14Kg	15Kg	17Kg	18Kg	20Kg	22Kg
