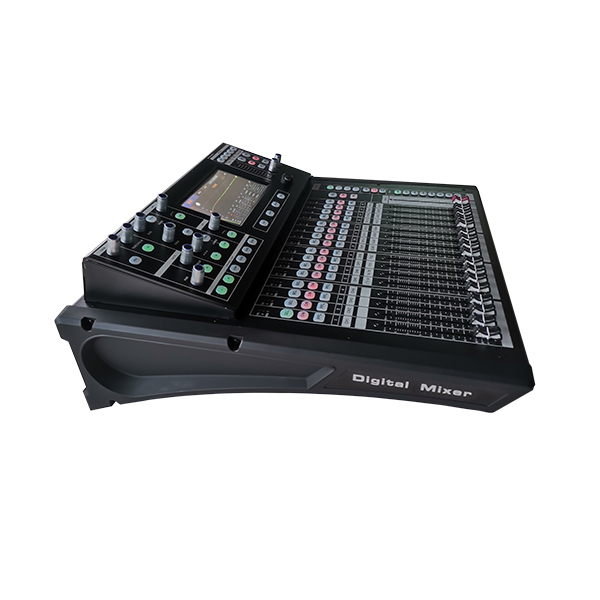

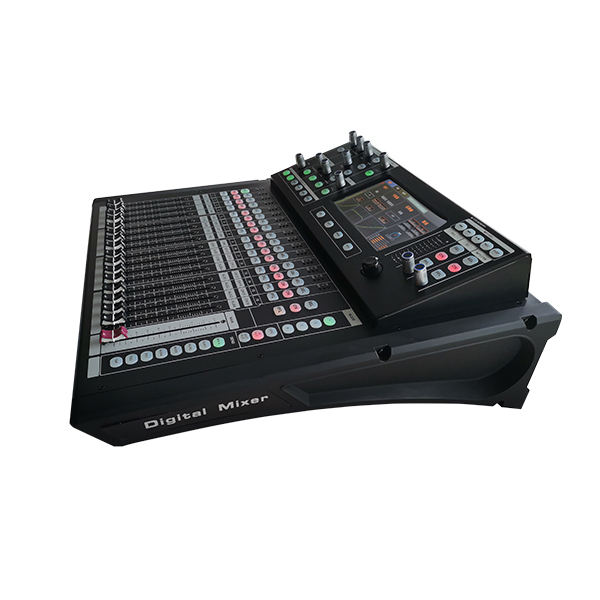

TCI-20DM This advanced Digital audio mixer device is designed for professional use, offering a versatile and powerful feature set. It includes 20 signal inputs, comprising 20 MIC inputs and 1 stereo input, ensuring comprehensive audio capture capabilities. The system operates on a Linux-based operating system, providing a secure and stable environment, free from viruses. Enhanced by an upgraded 4-core CPU processor with a 1G main frequency, it boasts a quick boot time of just 16 seconds, allowing for faster operation.

The device also supports 16 MIC/Line inputs, along with multiple digital input options, including AES, sound card, and MP3, as well as 6.5mm and 3.5mm stereo inputs. Users have full control over input channels, with features like panning adjustment, MIC input gain adjustment (digital gain), and odd-even stereo joint adjustment. The MIC channels have independent +48V phantom power, providing flexibility for different microphone types.

Key Audio Processing Features:

• Built-in compressor, high and low pass filters, and a 5-band parametric equalizer.
• Advanced output processing includes 15-31 band parametric EQ, compressor, delay, and phase adjustment.

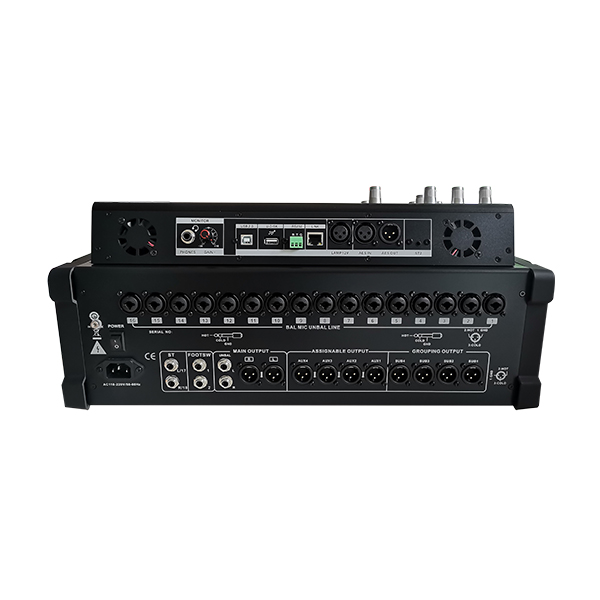

The device is equipped with 100MM electric faders, including signal and peak lights, and offers 12 signal outputs (main, AUX, group, and headphone monitoring outputs). It also features a digital recording function, user-definable layers, and output blending editing capabilities.

Additional Features:

• A built-in sound card for direct MP3/PC playback.
• 4 quick scene calling modes, 100 scene storage with customizable names, and seamless scene switching.
• Dual independent DSP effectors, AES digital signal input/output, and RS232/485/TCP protocol central control support.

The device is controlled via a 7-inch 1024x600 high-definition capacitive touch display, which supports multi-operating system control software, including IOS, Android, and Windows. It also supports 100M wired network port adjustments or wireless adjustments via an external router, making it a highly adaptable and user-friendly audio solution.
